| Rated Line Pull: |
12500Lbs (5670kgs) single-line |
| Motor: |
6.6hp/12V Series Wound/6.6hp/24V Series Wound |
| Control: |
Remote Switch, 12′(3.7m) lead |
| Gear Train: |
3-Stage Planetary |
| Gear Ratio: |
193.2 |

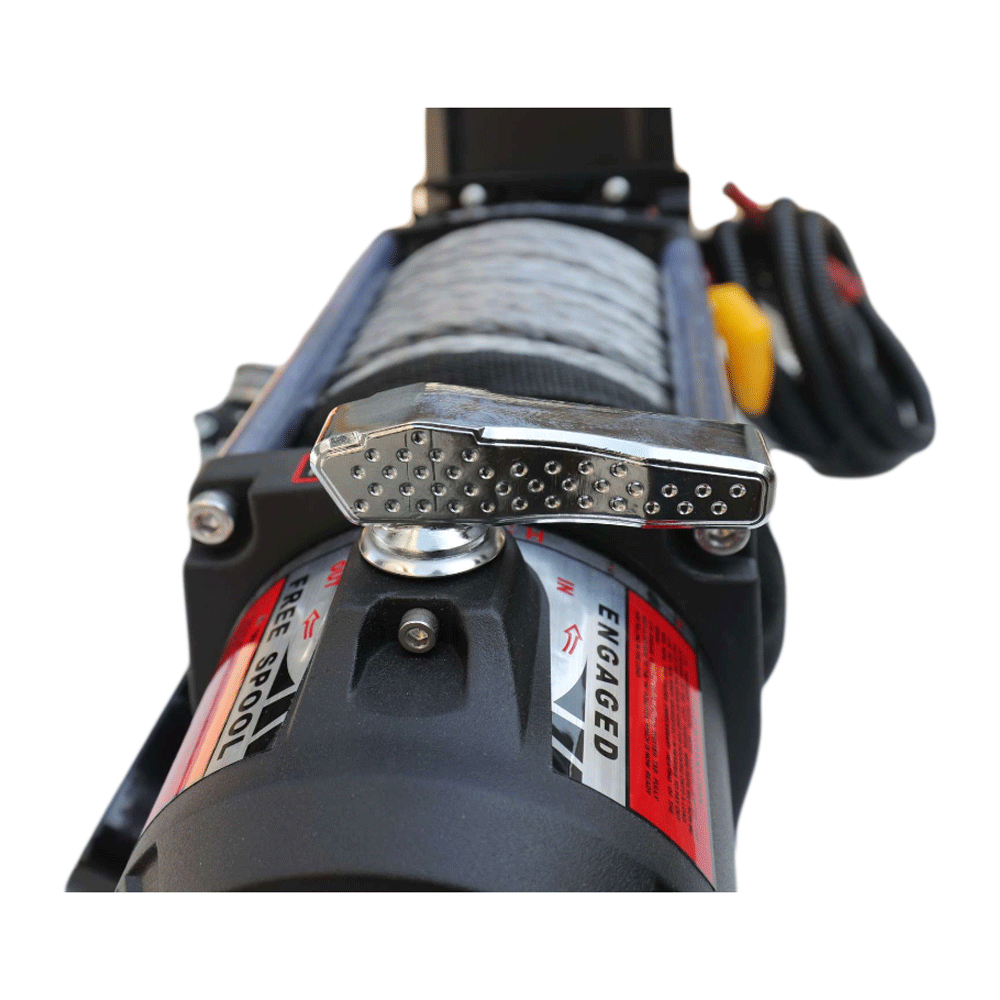

| Clutch: |
Sliding Ring Gear |
| Brake: |
Automatic In The Drum |
| Drum Size: |
Diameter2.5″(63.5mm)Length8.75″(222mm) |

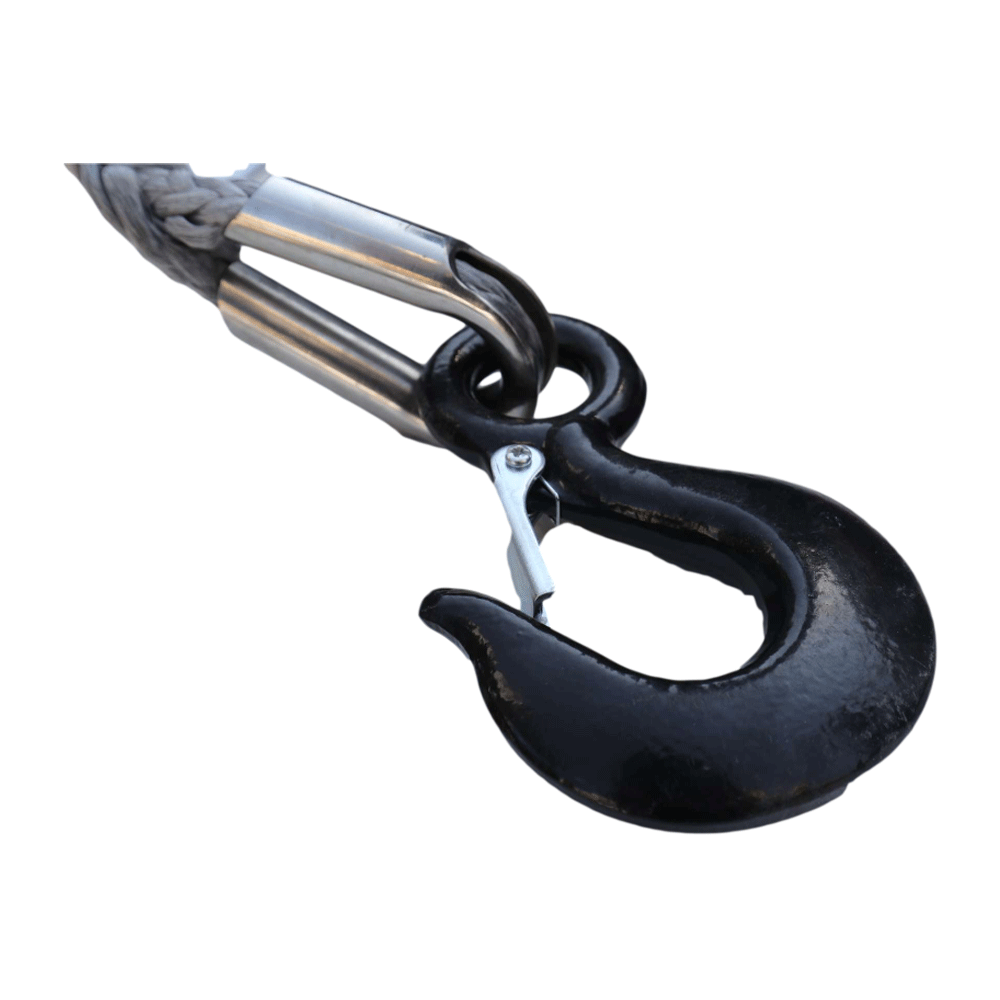

| Wire Rope: |
88′ 7/16″ Diameter(27m,11mm Diameter)9111271 |

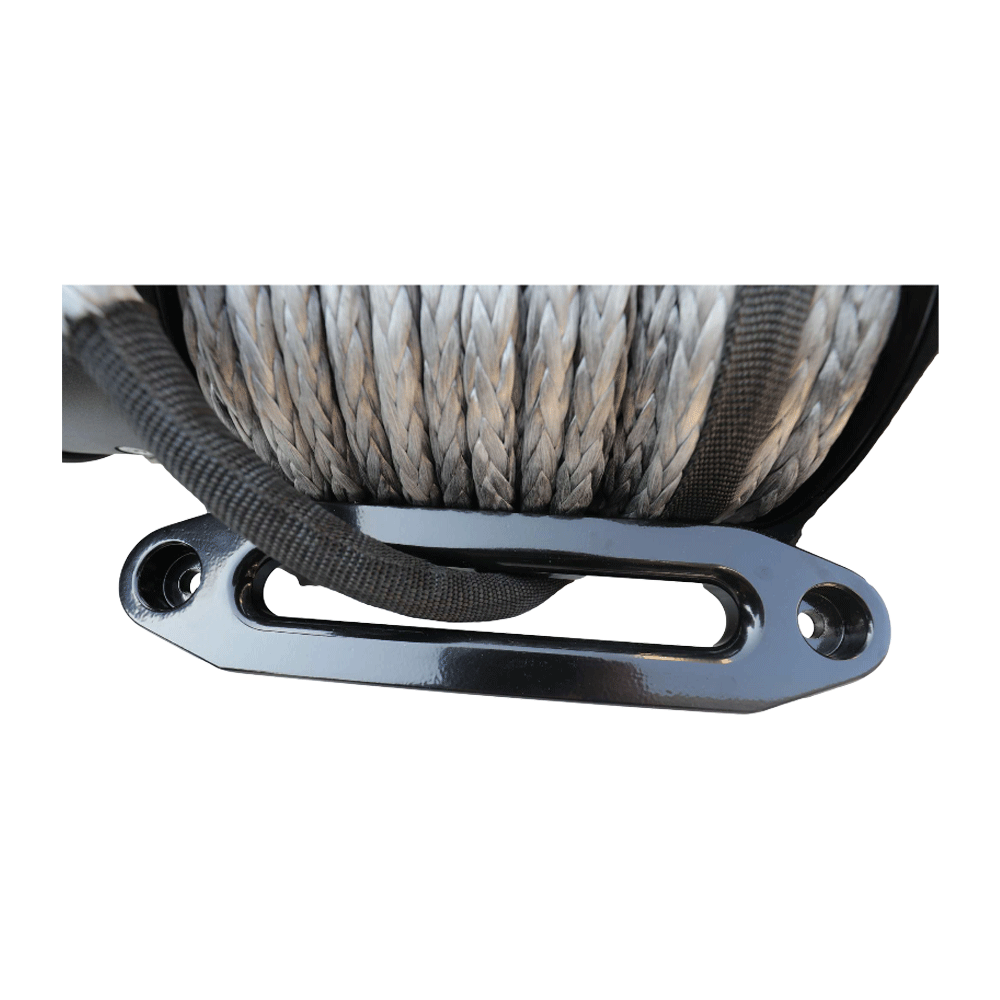

| Fairlead: |
A.F.L |

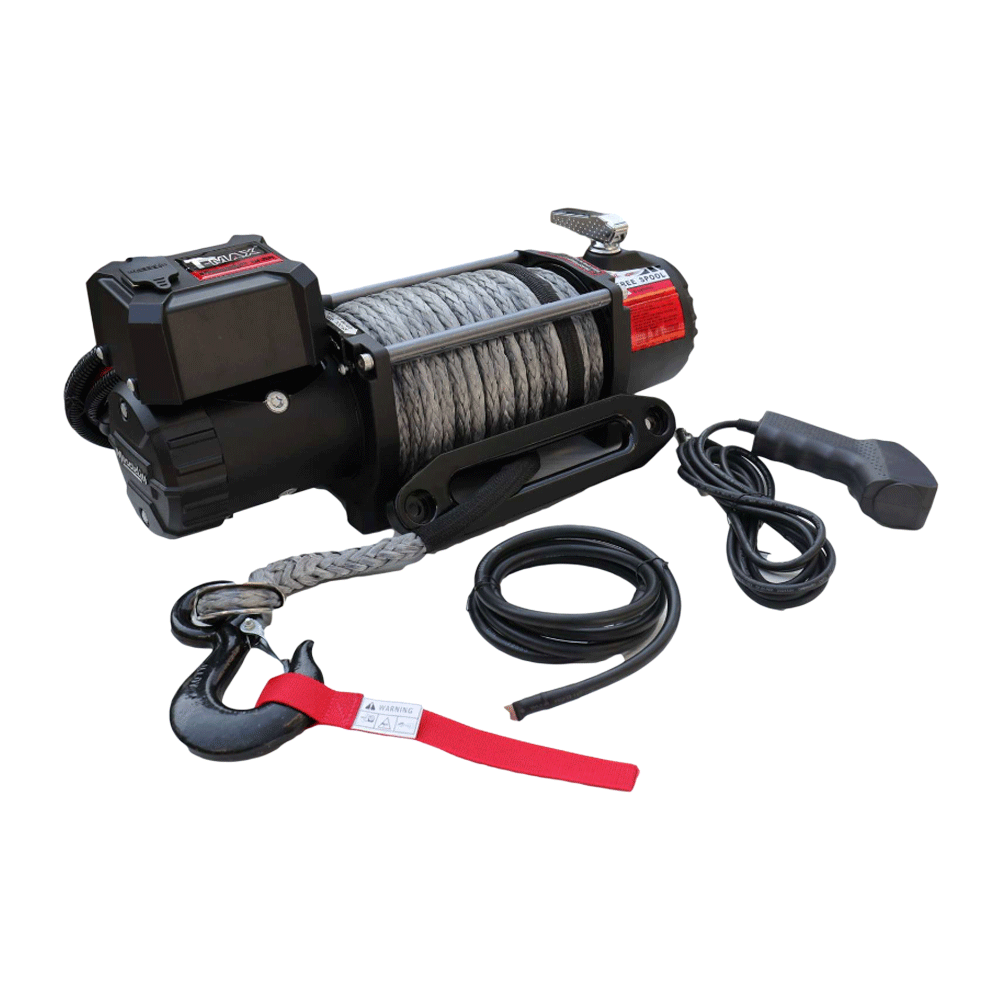

| Remote Control: |
Included |
| Recommended Battery: |
650CCA minimum for winching |
| Battery Leads: |
25mm2, 72″(1.83m) |
| Finish: |
Black |
| Weight: |
61Lbs (27.6Kg) |
| Overall Dimension: |
(LxWxH)21.2″x6.3″x7.8″(538x160x196) |
| Mounting Bolt Pattern: |
10.00±0.015INx4.50±0.010IN/(254.0×114.3mm) |
